Description

  Solid State Relay Switch is a simple kit which will help you control (ON / OFF) a single high power circuit from a low power drive.


Load - 24 to 240 VAC @ 500 W

Trigger voltage - 2 to 5 VDC (TTL) @ 10 mA

Input isolated with use of Optocoupler

Power Battery Terminal (PBT) for easy input 230 VAC mains and load connection

Terminal pins for connecting input trigger signal

Heatsink for TRIAC

Four mounting holes of 3.2 mm each

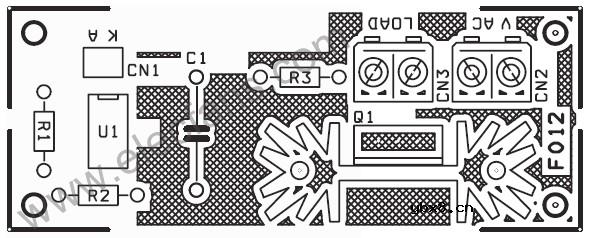

PCB dimensions 29 mm x 74 mm

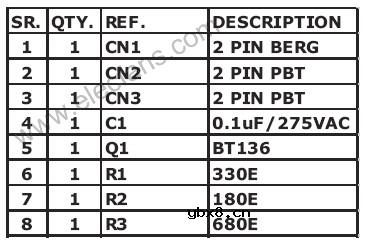

Schematic
